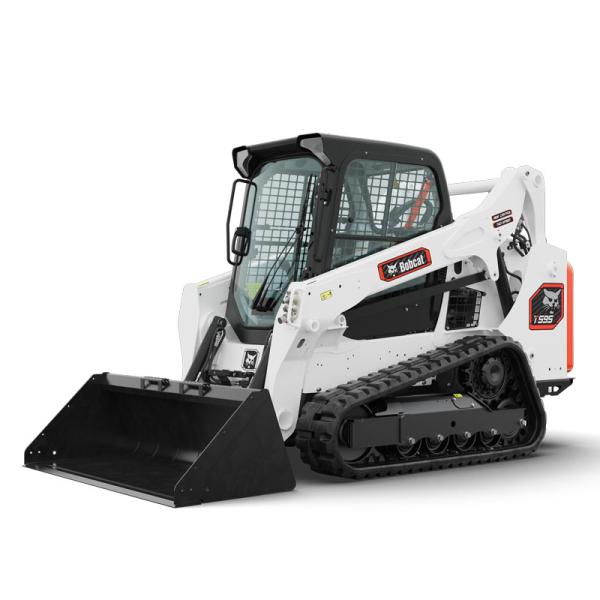

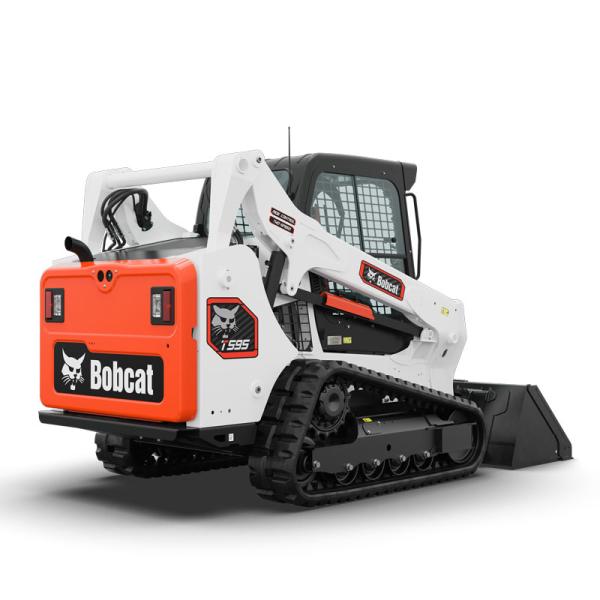

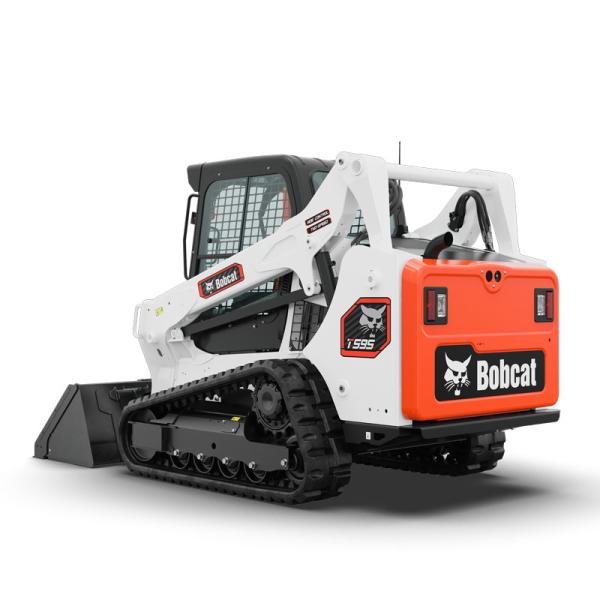

Bobcat T595 Compact Track Loader
| Make | Bobcat |
| Model | T595 (M3-Series) |
| Type | Track Loaders |
How can we help?
Description
Take productivity to new heights with powerful breakout forces and hydraulics, streamlined maintenance, and fast cycle times.
Standard Selectable Joystick Control
You won’t find a tougher track system
Powerful hydraulic performance
Cold weather engine protection
Specifications
- Auxiliary High Flow: 26.7 gal/min
- Auxiliary Std Flow: 17.1 gal/min
- Emissions Tier (EPA): Tier 4
- Engine Cooling: Liquid
- Engine Fuel: Diesel
- Fuel Tank: 36.5 gal
- Ground Pressure (Rubber): 5.1 psi
- Height: 77.8 in
- Height to Bucket Hinge Pin: 119 in
- Height with Operator Cab: 77.8 in
- Horsepower: 74 hp
- Length: 133 in
- Length of track on ground: 54.1 in
- Length with Standard Bucket: 133 in
- Length without Attachment: 104.6 in
- Operating Capacity (50% of Tip): 3142 lb
- Operating Weight: 8055 lb
- Rated Operating Capacity (ISO): 2,200 lb
- Reach @ Maximum Height: 34.9 in
- System Relief @ Quick Couplers: 3,500 psi
- Tipping Load: 6285 lb
- Track Width: 12.6 in
- Track Width - Optional: 15.8 in
- Travel Speed: 7.1 mph
- Travel Speed (2-speed option): 10.4 mph
- Turning Radius: 80 in
- Width: 67.1 in
- Width (with bucket): 68 in
Features
- The optional Automatic Ride Control detects when you’re carrying material and cushions the load to reduce spillage and increase operator comfort. The system works at any speed. Operators can flip a switch to turn it off for backdragging or other tasks.
- The 70-hp Bobcat® T595 compact track loader is designed to deliver more usable horsepower, so you can work quicker, lift more, and outperform the competition.
- Get all the productivity-enhancing features your projects demand, including rapid cycle times, powerful breakout forces, and a wider range of power thanks to the Bobcat® Tier 4 engine and powerful hydraulic system.
