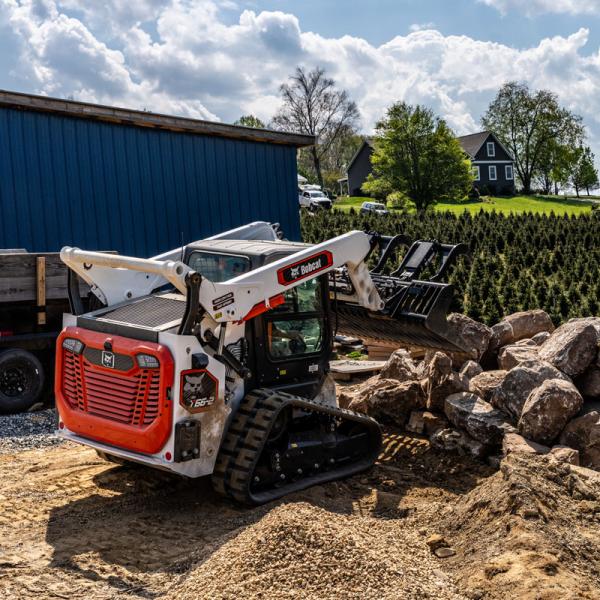

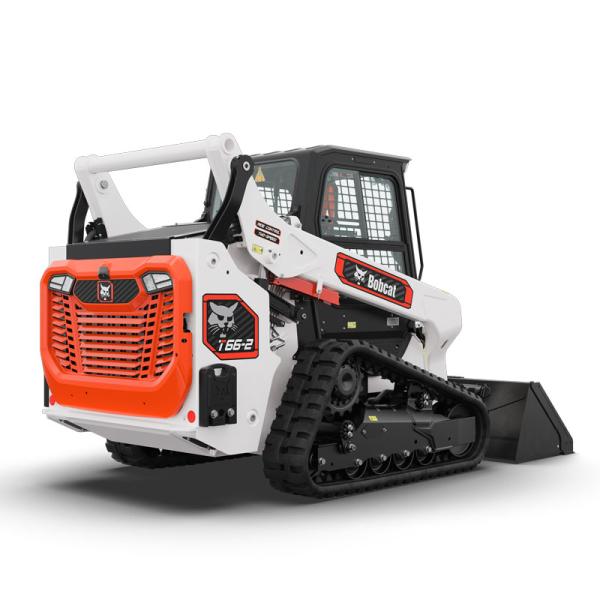

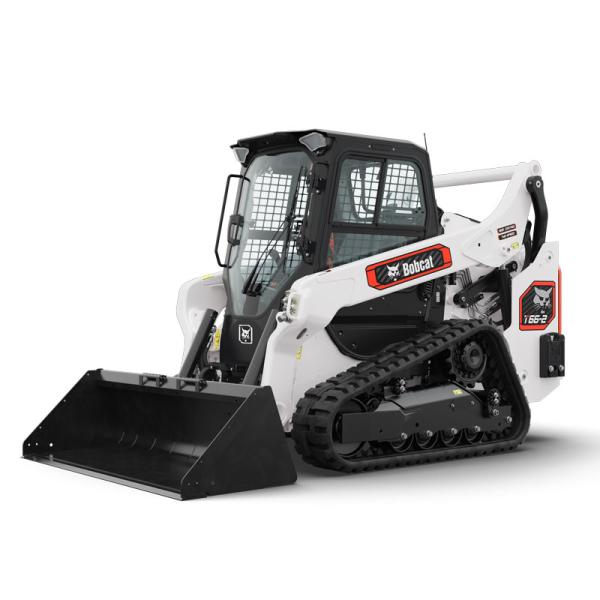

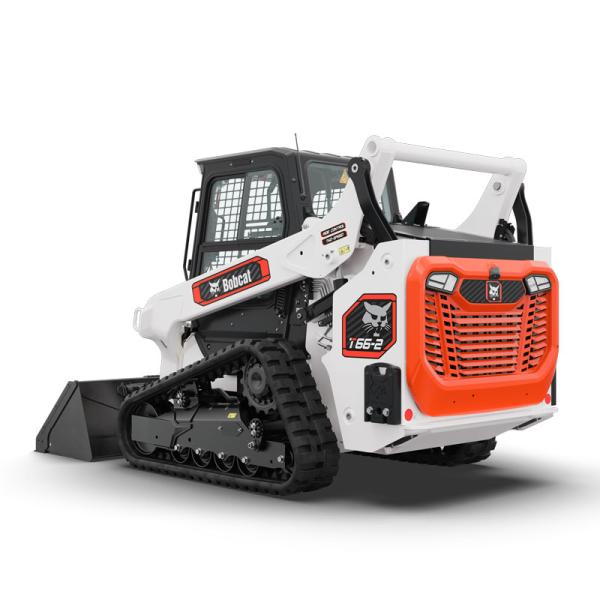

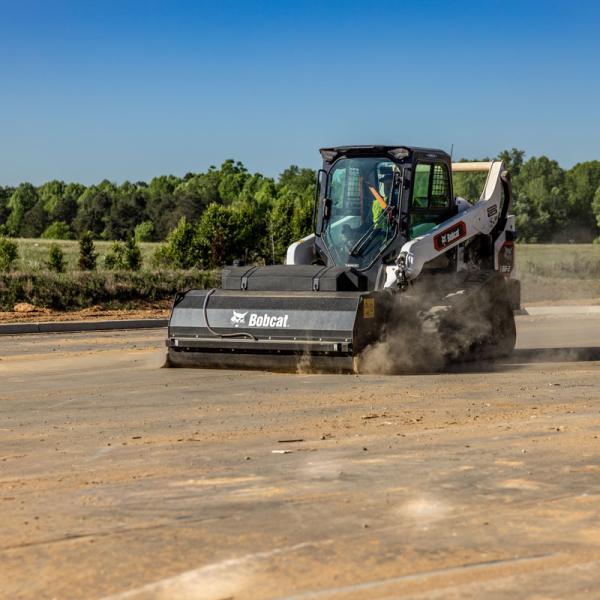

Bobcat T66 Compact Track Loader
| Make | Bobcat |
| Model | T66 (R-Series) |
| Type | Track Loaders |
How can we help?
Description
No matter how extreme your working conditions are, the vertical-lift-path Bobcat® T66 compact track loader tackles tough jobs where other equipment can’t.
Increased lifting capabilities
Powerful hydraulic performance
Fast cycle times
Premium comfort
Specifications
- Auxiliary High Flow: 26.9 gal/min
- Auxiliary Std Flow: 17.6 gal/min
- Emissions Tier (EPA): Tier 4
- Engine Cooling: Liquid
- Engine Fuel: Diesel
- Fuel Tank: 28.3 gal
- Ground Pressure (Rubber): 5.9 psi
- Height: 80.5 in
- Height to Bucket Hinge Pin: 120 in
- Height with Operator Cab: 80.5 in
- Horsepower: 74 hp
- Length: 134.9 in
- Length of track on ground: 54.3 in
- Length with Standard Bucket: 134.9 in
- Length without Attachment: 107 in
- Operating Capacity (50% of Tip): 3500 lb
- Operating Weight: 8927 lb
- Rated Operating Capacity (ISO): 2,450 lb
- Reach @ Maximum Height: 34.2 in
- System Relief @ Quick Couplers: 3,450 psi
- Tipping Load: 7000 lb
- Track Width: 12.6 in
- Track Width - Optional: 15.7 in
- Travel Speed: 7.2 mph
- Travel Speed (2-speed option): 10.2 mph
- Turning Radius: 81.5 in
- Width: 67 in
- Width (with bucket): 68 in
Features
- The vertical-lift-path T66 delivers powerful hydraulics and breakout forces, fast cycle times, and increased lifting capabilities.
- The 74-hp T66 compact track loader includes a redesigned Bobcat inline engine and direct-drive system, lift arms with cast-steel construction, and improved cooling performance.
- The roomy T66 cab provides a sealed and pressurized environment complete with an available heated air-ride seat, clear-side enclosure, automatic heat, and air conditioning, and an innovative display with machine information and performance data
