Bobcat T76 Compact Track Loader
| Make | Bobcat |
| Model | T76 (R-Series) |
| Type | Track Loaders |
How can we help?
Description
The Bobcat® T76 compact track loader is engineered to deliver more usable horsepower and better overall performance so you can complete bigger jobs in less time.
Increased lifting capabilities
Standard Selectable Joystick Control

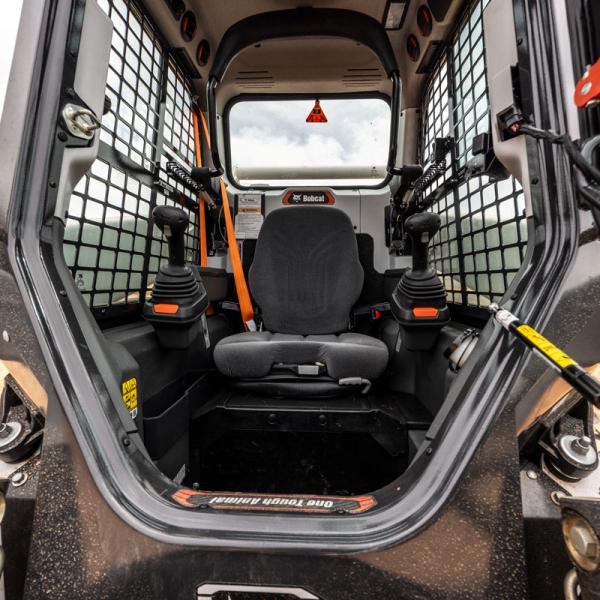

Premium comfort features
Specifications
- Auxiliary High Flow: 30.3 gal/min
- Auxiliary Std Flow: 23.3 gal/min
- Emissions Tier (EPA): Tier 4
- Engine Cooling: Liquid
- Engine Fuel: Diesel
- Fuel Tank: 31.7 gal
- Ground Pressure (Rubber): 6.2 psi
- Height: 81.8 in
- Height to Bucket Hinge Pin: 128.3 in
- Height with Operator Cab: 81.8 in
- Horsepower: 74 hp
- Length: 147.1 in
- Length of track on ground: 59.2 in
- Length with Standard Bucket: 147.1 in
- Length without Attachment: 113.9 in
- Operating Capacity (50% of Tip): 4143 lb
- Operating Weight: 10250 lb
- Rated Operating Capacity (ISO): 2,900 lb
- Reach @ Maximum Height: 39.9 in
- System Relief @ Quick Couplers: 3,450 psi
- Tipping Load: 8285 lb
- Track Width: 12.6 in
- Track Width - Optional: 17.7 in
- Travel Speed: 6.8 mph
- Travel Speed (2-speed option): 9.2 mph
- Turning Radius: 89.3 in
- Width: 72.9 in
- Width (with bucket): 74 in
Features
- Operators appreciate the loader’s powerful hydraulics and breakout forces, fast cycle times, and leading operator comfort.
- The loader's low ground pressure track system gives operators the ability to push through soft, sandy, wet, or muddy conditions.
- The 74-hp loader boasts an inline engine and direct-drive system as well as cast-steel lift arms and an optimized lift arm linkage to increase lift height and capacity.
- The vertical-lift-path T76 compact track loader, part of the revolutionary R-Series loader lineup, is designed to meet the demands of today’s toughest jobsites.
- The advanced 5-link torsion suspension undercarriage provides a more comfortable ride on long working days while enhanced features make routine service easy.
