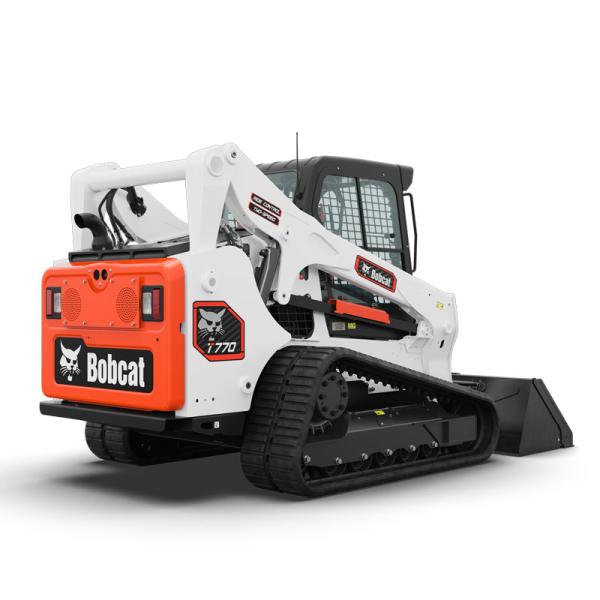

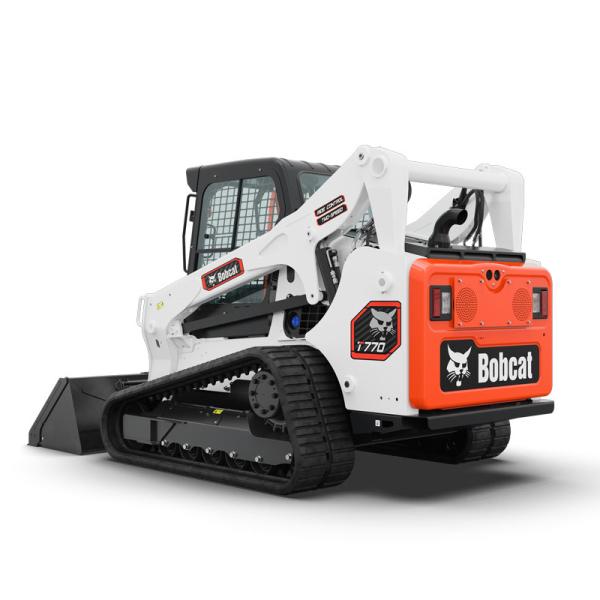

Bobcat T770 Compact Track Loader
| Make | Bobcat |
| Model | T770 (M3-Series) |
| Type | Track Loaders |
How can we help?
Description
With 11 feet of vertical lift, the Bobcat® T770 compact track loader is primed for loading trucks, grinders, and hoppers as well as many other jobs.
Powerful breakout forces
Durable undercarriage
Superior lift arms
Maximum headroom and legroom
Unmatched machine versatility
Specifications
- Auxiliary High Flow: 36.6 gal/min
- Auxiliary Std Flow: 23 gal/min
- Emissions Tier (EPA): Tier 4
- Engine Cooling: Liquid
- Engine Fuel: Diesel
- Fuel Tank: 44.4 gal
- Ground Pressure (Rubber): 4.2 psi
- Height: 81.3 in
- Height to Bucket Hinge Pin: 132 in
- Height with Operator Cab: 81.3 in
- Horsepower: 92 hp
- Length: 141.6 in
- Length of track on ground: 63.7 in
- Length with Standard Bucket: 141.6 in
- Length without Attachment: 114.3 in
- Operating Capacity (50% of Tip): 4960 lb
- Operating Weight: 10515 lb
- Rated Operating Capacity (ISO): 3,475 lb
- Reach @ Maximum Height: 33.6 in
- System Relief @ Quick Couplers: 3,500 psi
- Tipping Load: 9929 lb
- Track Width: 17.7 in
- Travel Speed: 6 mph
- Travel Speed (2-speed option): 9.3 mph
- Turning Radius: 88 in
- Width: 78 in
- Width (with bucket): 80 in
Features
- The Bobcat® T770 compact track loader delivers industry-leading breakout forces and rated operating capacity. The 92-hp Bobcat® engine meets Tier 4 standards without a Diesel Particulate Filter (DPF), which reduces time otherwise lost to DPF regeneration and long-term maintenance costs.
- Engineered to protect your uptime, the T770 features cold weather protection to prevent premature component wear, Smart Cooling for efficient operations in harsh working conditions, battery run-down protection, electronic protection, protected hoses and quick couplers, and more.
- The optional Automatic Ride Control is easily activated from the cab to cushion the bucket for less spillage and greater operator comfort.
