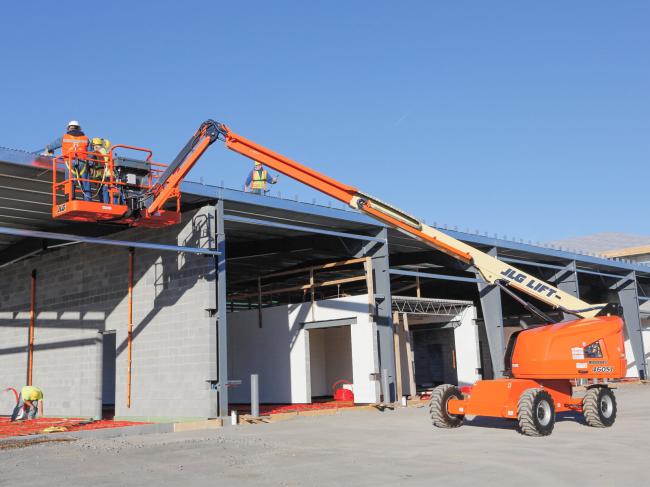

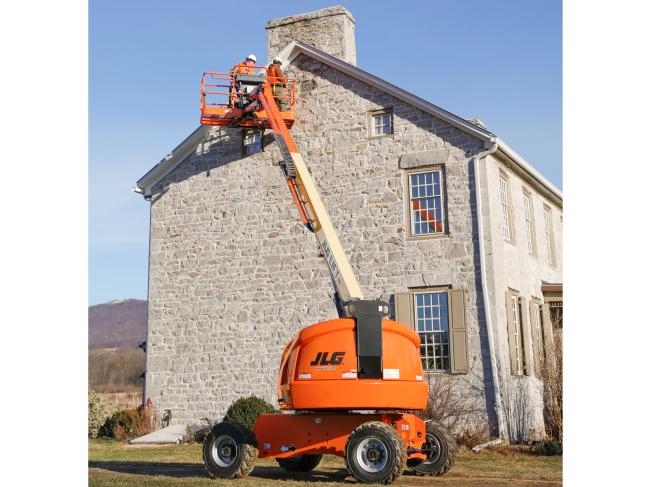

JLG Equipment 460SJ
Boom Lifts
How can we help?
888-503-4685
Key Specs
- Platform Height: 46 ft / 14.02 m
- Platform Capacity - Unrestricted: 600 lb / 272.16 kg
- Horizontal Outreach: 39 ft / 11.89 m
Key Features
- Improved multifunction capability increases productivity
- New hood design provides more durability and serviceability
- Larger capacity at 600 lb
Key Specs
- Platform Height: 46 ft / 14.02 m
- Platform Capacity - Unrestricted: 600 lb / 272.16 kg
- Horizontal Outreach: 39 ft / 11.89 m
Key Features
- Improved multifunction capability increases productivity
- New hood design provides more durability and serviceability
- Larger capacity at 600 lb
Features
-
Larger capacity at 600 lb
-
New hood design provides more durability and serviceability
-
Improved multifunction capability increases productivity
Specifications
Auxiliary Power: |
12 Volts DC |
Capacity - Fuel Tank: |
22 gal. / 83.28 L |
Capacity - Hydraulic Reservoir: |
36 gal. / 136.27 L |
Drive Speed - 4WD: |
4.5 mph / 7.24 km/h |
Engine Type - Diesel: |
Deutz D2.9L4 Tier 4 Final 49 hp 36.4 kW |
Engine Type - Dual Fuel: |
GM Vortec 3000 MPFI 82 hp 61 kW |
Gradeability - 4WD: |
45 % |
Ground Clearance: |
1 ft / 0.31 m |
Horizontal Jib Rotation: |
0 Degrees |
Horizontal Outreach: |
39 ft / 11.89 m |
Jib - Range of articulation: |
130 Degrees |
Machine Height: |
8 ft 1 in. / 2.47 m |
Machine Length: |
29 ft 3 in. / 8.91 m |
Machine Weight: |
16600 lb / 7529.63 kg |
Machine Width: |
7 ft 7 in. / 2.31 m |
Maximum Ground Bearing Pressure: |
60 psi / 4.20 Kg/cm2 |
Platform Capacity - Unrestricted: |
600 lb / 272.16 kg |
Platform Dimension A: |
3 ft / 0.91 m |
Platform Dimension B: |
8 ft / 2.44 m |
Platform Height: |
46 ft / 14.02 m |
Swing: |
360 Degrees |
Swing Type: |
Continuous |
Tailswing: |
2 ft 10 in. / 0.86 m |
Tire Size: |
12 x 16.5 Pneumatic Lug Tread Tires |
Turning Radius - Outside: |
15 ft 11 in. / 4.84 m |
Links
-
Features
Features
-
Larger capacity at 600 lb
-
New hood design provides more durability and serviceability
-
Improved multifunction capability increases productivity
-
-
Specifications
Specifications
Auxiliary Power:
12 Volts DC Capacity - Fuel Tank:
22 gal. / 83.28 L Capacity - Hydraulic Reservoir:
36 gal. / 136.27 L Drive Speed - 4WD:
4.5 mph / 7.24 km/h Engine Type - Diesel:
Deutz D2.9L4 Tier 4 Final 49 hp 36.4 kW Engine Type - Dual Fuel:
GM Vortec 3000 MPFI 82 hp 61 kW Gradeability - 4WD:
45 % Ground Clearance:
1 ft / 0.31 m Horizontal Jib Rotation:
0 Degrees Horizontal Outreach:
39 ft / 11.89 m Jib - Range of articulation:
130 Degrees Machine Height:
8 ft 1 in. / 2.47 m Machine Length:
29 ft 3 in. / 8.91 m Machine Weight:
16600 lb / 7529.63 kg Machine Width:
7 ft 7 in. / 2.31 m Maximum Ground Bearing Pressure:
60 psi / 4.20 Kg/cm2 Platform Capacity - Unrestricted:
600 lb / 272.16 kg Platform Dimension A:
3 ft / 0.91 m Platform Dimension B:
8 ft / 2.44 m Platform Height:
46 ft / 14.02 m Swing:
360 Degrees Swing Type:
Continuous Tailswing:
2 ft 10 in. / 0.86 m Tire Size:
12 x 16.5 Pneumatic Lug Tread Tires Turning Radius - Outside:
15 ft 11 in. / 4.84 m -
