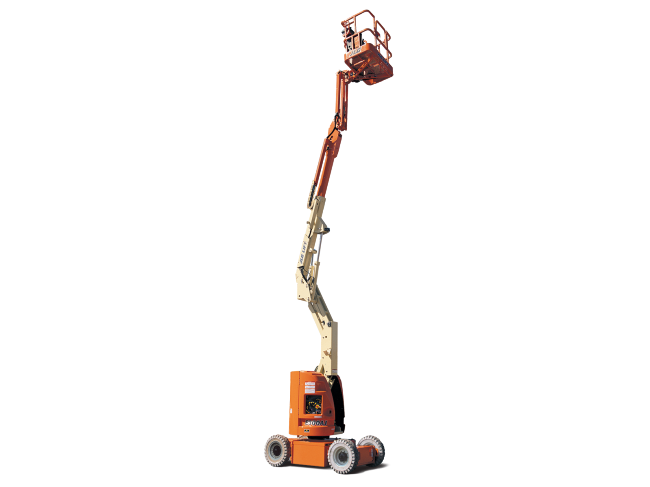

JLG Equipment E300AJ
Boom Lifts
How can we help?
888-503-4685
Features
-
Accessibility – up and over access, optional jib
-
Environmentally friendly – zero emissions
-
Productivity – longer with longer duty cycles
-
Maneuverability – move over uneven surfaces with Automatic Traction Control
Specifications
Batteries: |
8 x 6V, 305 amp-hr |
Capacity - Hydraulic Reservoir: |
2.1 gal. / 7.95 L |
Drive Speed - Platform Lowered: |
3 mph / 4.83 km/h |
Electrical System: |
48 Volts DC |
Gradeability - 2WD: |
25 % |
Ground Clearance: |
4 in. / 0.1 m |
Horizontal Jib Rotation: |
0 Degrees |
Horizontal Outreach: |
20 ft 3 in. / 6.17 m |
Jib - Range of articulation: |
144 Degrees |
Machine Height: |
6 ft 7 in. / 2.01 m |
Machine Length: |
18 ft 2 in. / 5.54 m |
Machine Weight: |
15060 lb / 6831.10 kg |
Platform Capacity - Unrestricted: |
500 lb / 226.80 kg |
Platform Dimension A: |
2 ft 6 in. / 0.76 m |
Platform Dimension B: |
4 ft / 1.22 m |
Platform Height: |
30 ft 2 in. / 9.19 m |
Swing: |
350 Degrees |
Swing Type: |
Non-Continuous |
Tailswing: |
0 in. / 0 m |
Tire Size: |
25 x 7 x 12 Non-marking |
Turning Radius - Outside: |
10 ft 2 in. / 3.1 m |
Up and Over Height: |
13 ft 2 in. / 4.01 m |
Wheelbase: |
5 ft 5 in. / 1.65 m |
