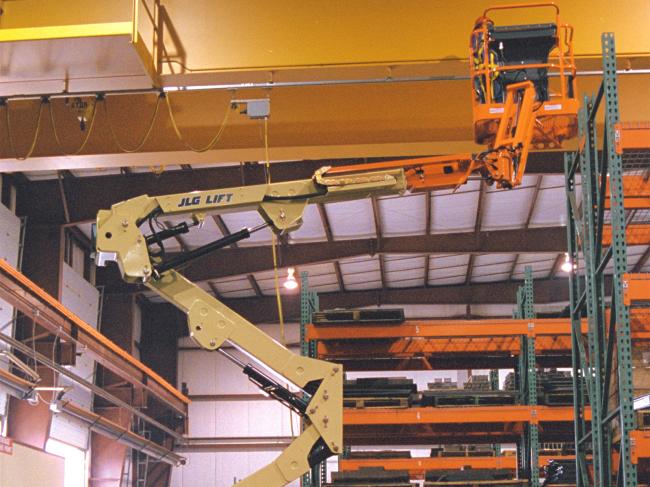

JLG Equipment E400AJP
Boom Lifts
How can we help?
888-503-4685
Key Specs
- Platform Height: 40 ft / 12.19 m
- Machine Width: 5 ft 9 in. / 1.75 m
- Platform Capacity - Unrestricted: 500 lb / 226.80 kg
Key Features
- Accessibility – up and over access, optional jib
- Maneuverability – move over uneven surfaces with Automatic Traction Control
- Productivity – work longer with longer duty cycles
- Environmentally friendly – zero emissions
Key Specs
- Platform Height: 40 ft / 12.19 m
- Machine Width: 5 ft 9 in. / 1.75 m
- Platform Capacity - Unrestricted: 500 lb / 226.80 kg
Key Features
- Accessibility – up and over access, optional jib
- Maneuverability – move over uneven surfaces with Automatic Traction Control
- Productivity – work longer with longer duty cycles
- Environmentally friendly – zero emissions
Features
-
Accessibility – up and over access, optional jib
-
Maneuverability – move over uneven surfaces with Automatic Traction Control
-
Environmentally friendly – zero emissions
-
Productivity – work longer with longer duty cycles
Specifications
Batteries: |
8 x 6V, 370 amp-hr |
Capacity - Hydraulic Reservoir: |
4 gal. / 15.14 L |
Drive Speed - Platform Lowered: |
3.2 mph / 5.15 km/h |
Electrical System: |
48 Volts DC |
Gradeability - 2WD: |
30 % |
Ground Clearance: |
9 in. / 0.22 m |
Horizontal Jib Rotation: |
180 Degrees |
Horizontal Outreach: |
22 ft 5 in. / 6.83 m |
Jib - Range of articulation: |
144 Degrees |
Machine Height: |
6 ft 7 in. / 2.01 m |
Machine Length: |
22 ft / 6.71 m |
Machine Weight: |
13700 lb / 6214.22 kg |
Machine Width: |
5 ft 9 in. / 1.75 m |
Platform Capacity: |
500 lb / 226.80 kg |
Platform Dimension A: |
2 ft 6 in. / 0.76 m |
Platform Dimension B: |
5 ft / 1.52 m |
Platform Height: |
40 ft / 12.19 m |
Swing: |
360 Degrees |
Swing Type: |
Non-Continuous |
Tailswing: |
0 in. / 0 m |
Tire Size: |
240/55-17.5 Pnuematic |
Turning Radius - Outside: |
10 ft 4 in. / 3.15 m |
Up and Over Height: |
21 ft 6 in. / 6.55 m |
Links
-
Features
Features
-
Accessibility – up and over access, optional jib
-
Maneuverability – move over uneven surfaces with Automatic Traction Control
-
Environmentally friendly – zero emissions
-
Productivity – work longer with longer duty cycles
-
-
Specifications
Specifications
Batteries:
8 x 6V, 370 amp-hr Capacity - Hydraulic Reservoir:
4 gal. / 15.14 L Drive Speed - Platform Lowered:
3.2 mph / 5.15 km/h Electrical System:
48 Volts DC Gradeability - 2WD:
30 % Ground Clearance:
9 in. / 0.22 m Horizontal Jib Rotation:
180 Degrees Horizontal Outreach:
22 ft 5 in. / 6.83 m Jib - Range of articulation:
144 Degrees Machine Height:
6 ft 7 in. / 2.01 m Machine Length:
22 ft / 6.71 m Machine Weight:
13700 lb / 6214.22 kg Machine Width:
5 ft 9 in. / 1.75 m Platform Capacity:
500 lb / 226.80 kg Platform Dimension A:
2 ft 6 in. / 0.76 m Platform Dimension B:
5 ft / 1.52 m Platform Height:
40 ft / 12.19 m Swing:
360 Degrees Swing Type:
Non-Continuous Tailswing:
0 in. / 0 m Tire Size:
240/55-17.5 Pnuematic Turning Radius - Outside:
10 ft 4 in. / 3.15 m Up and Over Height:
21 ft 6 in. / 6.55 m -
