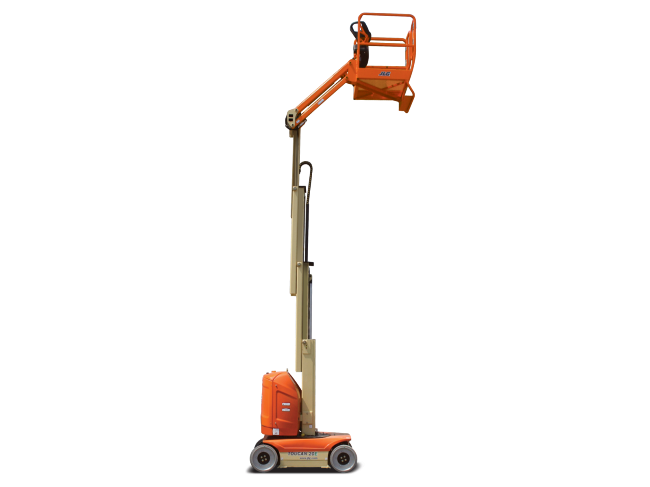

JLG Equipment T20E
Boom Lifts
How can we help?
888-503-4685
Key Specs
- Platform Height: 20 ft 2 in. / 6.15 m
- Platform Capacity: 500 lb / 226.80 kg
- Machine Width: 3 ft 3 in. / 0.99 m
Key Features
- Vertical telescopic mast with a jib lets you reach up and over obstacles in tighter spaces than an articulating boom
- Non-marking tires and efficient electric power for indoor jobs
- 25% gradeability for outside work
Key Specs
- Platform Height: 20 ft 2 in. / 6.15 m
- Platform Capacity: 500 lb / 226.80 kg
- Machine Width: 3 ft 3 in. / 0.99 m
Key Features
- Vertical telescopic mast with a jib lets you reach up and over obstacles in tighter spaces than an articulating boom
- Non-marking tires and efficient electric power for indoor jobs
- 25% gradeability for outside work
Features
-
Vertical telescopic mast with a jib lets you reach up and over obstacles in tighter spaces than an articulating boom
-
Non-marking tires and efficient electric power for indoor jobs
-
25% gradeability for outside work
Specifications
Batteries: |
225 amp-hr |
Capacity - Hydraulic Reservoir: |
5.3 gal. / 20.06 L |
Drive Speed - Platform Lowered: |
3.4 mph / 5.47 km/h |
Electrical System: |
24 Volts DC |
Gradeability - 2WD: |
25 % |
Ground Clearance: |
3 in. / 0.08 m |
Horizontal Jib Rotation: |
0 Degrees |
Horizontal Outreach: |
6 ft 7 in. / 2 m |
Jib - Range of articulation: |
125 Degrees |
Machine Height: |
6 ft 7 in. / 2.01 m |
Machine Length: |
6 ft 11 in. / 2.11 m |
Machine Weight: |
5360 lb / 2431.26 kg |
Machine Width: |
3 ft 3 in. / 0.99 m |
Platform Capacity - Unrestricted: |
500 lb / 226.80 kg |
Platform Dimension A: |
2 ft 9 in. / 0.84 m |
Platform Dimension B: |
2 ft 11 in. / 0.88 m |
Platform Height: |
20 ft 2 in. / 6.15 m |
Swing: |
360 Degrees |
Swing Type: |
Non-Continuous |
Tailswing: |
7 in. / 0.18 m |
Tire Size: |
16 x 5 x 10.5 noon-marking |
Turning Radius - Outside: |
5 ft 9 in. / 1.75 m |
Up and Over Height: |
16 ft 9 in. / 5.1 m |
Wheelbase: |
3 ft 11 in. / 1.19 m |
Links
-
Features
Features
-
Vertical telescopic mast with a jib lets you reach up and over obstacles in tighter spaces than an articulating boom
-
Non-marking tires and efficient electric power for indoor jobs
-
25% gradeability for outside work
-
-
Specifications
Specifications
Batteries:
225 amp-hr Capacity - Hydraulic Reservoir:
5.3 gal. / 20.06 L Drive Speed - Platform Lowered:
3.4 mph / 5.47 km/h Electrical System:
24 Volts DC Gradeability - 2WD:
25 % Ground Clearance:
3 in. / 0.08 m Horizontal Jib Rotation:
0 Degrees Horizontal Outreach:
6 ft 7 in. / 2 m Jib - Range of articulation:
125 Degrees Machine Height:
6 ft 7 in. / 2.01 m Machine Length:
6 ft 11 in. / 2.11 m Machine Weight:
5360 lb / 2431.26 kg Machine Width:
3 ft 3 in. / 0.99 m Platform Capacity - Unrestricted:
500 lb / 226.80 kg Platform Dimension A:
2 ft 9 in. / 0.84 m Platform Dimension B:
2 ft 11 in. / 0.88 m Platform Height:
20 ft 2 in. / 6.15 m Swing:
360 Degrees Swing Type:
Non-Continuous Tailswing:
7 in. / 0.18 m Tire Size:
16 x 5 x 10.5 noon-marking Turning Radius - Outside:
5 ft 9 in. / 1.75 m Up and Over Height:
16 ft 9 in. / 5.1 m Wheelbase:
3 ft 11 in. / 1.19 m -
