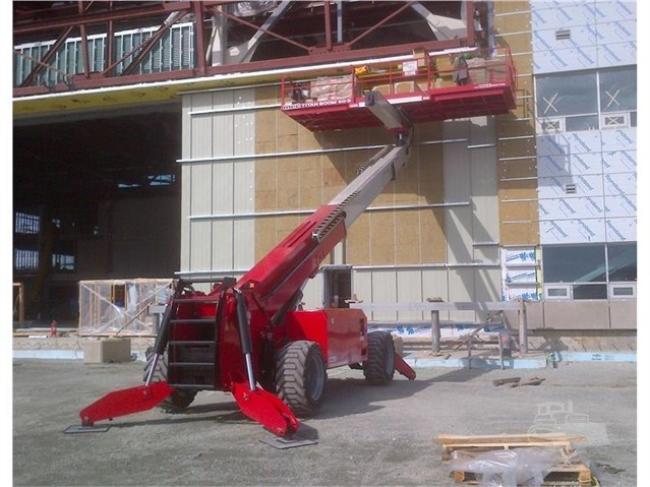

TITAN BOOM™ 60-S - BOOM LIFT
FEATURES:
● 1,000 lbs. (450 kg) distributed load for up to 4 workers and tools
● 1-touch chassis leveling
● 12V DC auxiliary power unit
● 18 in. (0.46 m) ground clearance
● 180° platform rotation
● 2,000 lbs. (900 kg) material load zone in center of platform
● 2-speed drive motors
● 3,000 lbs. (1,350 kg) Combined Platform Capacity:
● 4-wheel disc brakes
● AC power to the platform
● Dual front and rear stabilizers
● Easy access sliding side gates for material loading
● Emergency shut-off at platform and lower controls
● Engine shutdown protection
● Foam-filled R4 lug tread tires
● Fully proportional drive and lift controls
● Fully proportional multi-function controls
● High-torque power package with four wheel drive
● Hour meter
● Kubota turbo diesel engine
● Large swing module doors for access to all components
● Logically grouped components and numbered wiring for easy reference
● Machine tie-downs
● Multi-axis tilt sensor
● Non-skid metal deck construction
● On-board diagnostics center
● Oscillating front and rear axles for frame leveling ability
● Pinless guardrail system for quick and simple guard rail lowering
● Platform swing gate
● Powder coat finish
● Stainless steel wire rope lanyard anchors for full platform mobility
● Tilt alarm and horn
● Triple joystick interface
OPTIONS:
● 12 kW 3-phase 275A welder-ready generator
● AC generator (120V / 60Hz - 3,000W)
● AC generator (240V / 50Hz - 2,500W)
● Air line to platform, 1/2 in. (1.27 cm) inner diameter
● Australian compliant options
● Automotive horn
● CE compliant options
● Cladding rack
● Diesel scrubber muffler with spark arrestor
● Flashing beacon (continuous)
● Glazier rack
● Glazier side attachments
● Hostile environment kit
● Non-marking tires
● Pipe cradle
● Pipe rack
● Platform canopy
● Platform control box cover
● Platform work lights
● Sheet material rack
● Water line to platform
● Weld leads to platform
● Work bench
*Metric equivalent of working height adds 2m to platform height. U.S. adds 6 ft. to platform height.
Weight may vary with certain options or configurations.
Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
FEATURES:
● 1,000 lbs. (450 kg) distributed load for up to 4 workers and tools
● 1-touch chassis leveling
● 12V DC auxiliary power unit
● 18 in. (0.46 m) ground clearance
● 180° platform rotation
● 2,000 lbs. (900 kg) material load zone in center of platform
● 2-speed drive motors
● 3,000 lbs. (1,350 kg) Combined Platform Capacity:
● 4-wheel disc brakes
● AC power to the platform
● Dual front and rear stabilizers
● Easy access sliding side gates for material loading
● Emergency shut-off at platform and lower controls
● Engine shutdown protection
● Foam-filled R4 lug tread tires
● Fully proportional drive and lift controls
● Fully proportional multi-function controls
● High-torque power package with four wheel drive
● Hour meter
● Kubota turbo diesel engine
● Large swing module doors for access to all components
● Logically grouped components and numbered wiring for easy reference
● Machine tie-downs
● Multi-axis tilt sensor
● Non-skid metal deck construction
● On-board diagnostics center
● Oscillating front and rear axles for frame leveling ability
● Pinless guardrail system for quick and simple guard rail lowering
● Platform swing gate
● Powder coat finish
● Stainless steel wire rope lanyard anchors for full platform mobility
● Tilt alarm and horn
● Triple joystick interface
OPTIONS:
● 12 kW 3-phase 275A welder-ready generator
● AC generator (120V / 60Hz - 3,000W)
● AC generator (240V / 50Hz - 2,500W)
● Air line to platform, 1/2 in. (1.27 cm) inner diameter
● Australian compliant options
● Automotive horn
● CE compliant options
● Cladding rack
● Diesel scrubber muffler with spark arrestor
● Flashing beacon (continuous)
● Glazier rack
● Glazier side attachments
● Hostile environment kit
● Non-marking tires
● Pipe cradle
● Pipe rack
● Platform canopy
● Platform control box cover
● Platform work lights
● Sheet material rack
● Water line to platform
● Weld leads to platform
● Work bench
*Metric equivalent of working height adds 2m to platform height. U.S. adds 6 ft. to platform height.
Weight may vary with certain options or configurations.
Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
TITAN BOOM™ 60-S - BOOM LIFT
FEATURES:
● 1,000 lbs. (450 kg) distributed load for up to 4 workers and tools
● 1-touch chassis leveling
● 12V DC auxiliary power unit
● 18 in. (0.46 m) ground clearance
● 180° platform rotation
● 2,000 lbs. (900 kg) material load zone in center of platform
● 2-speed drive motors
● 3,000 lbs. (1,350 kg) Combined Platform Capacity:
● 4-wheel disc brakes
● AC power to the platform
● Dual front and rear stabilizers
● Easy access sliding side gates for material loading
● Emergency shut-off at platform and lower controls
● Engine shutdown protection
● Foam-filled R4 lug tread tires
● Fully proportional drive and lift controls
● Fully proportional multi-function controls
● High-torque power package with four wheel drive
● Hour meter
● Kubota turbo diesel engine
● Large swing module doors for access to all components
● Logically grouped components and numbered wiring for easy reference
● Machine tie-downs
● Multi-axis tilt sensor
● Non-skid metal deck construction
● On-board diagnostics center
● Oscillating front and rear axles for frame leveling ability
● Pinless guardrail system for quick and simple guard rail lowering
● Platform swing gate
● Powder coat finish
● Stainless steel wire rope lanyard anchors for full platform mobility
● Tilt alarm and horn
● Triple joystick interface
OPTIONS:
● 12 kW 3-phase 275A welder-ready generator
● AC generator (120V / 60Hz - 3,000W)
● AC generator (240V / 50Hz - 2,500W)
● Air line to platform, 1/2 in. (1.27 cm) inner diameter
● Australian compliant options
● Automotive horn
● CE compliant options
● Cladding rack
● Diesel scrubber muffler with spark arrestor
● Flashing beacon (continuous)
● Glazier rack
● Glazier side attachments
● Hostile environment kit
● Non-marking tires
● Pipe cradle
● Pipe rack
● Platform canopy
● Platform control box cover
● Platform work lights
● Sheet material rack
● Water line to platform
● Weld leads to platform
● Work bench
*Metric equivalent of working height adds 2m to platform height. U.S. adds 6 ft. to platform height.
Weight may vary with certain options or configurations.
Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
FEATURES:
● 1,000 lbs. (450 kg) distributed load for up to 4 workers and tools
● 1-touch chassis leveling
● 12V DC auxiliary power unit
● 18 in. (0.46 m) ground clearance
● 180° platform rotation
● 2,000 lbs. (900 kg) material load zone in center of platform
● 2-speed drive motors
● 3,000 lbs. (1,350 kg) Combined Platform Capacity:
● 4-wheel disc brakes
● AC power to the platform
● Dual front and rear stabilizers
● Easy access sliding side gates for material loading
● Emergency shut-off at platform and lower controls
● Engine shutdown protection
● Foam-filled R4 lug tread tires
● Fully proportional drive and lift controls
● Fully proportional multi-function controls
● High-torque power package with four wheel drive
● Hour meter
● Kubota turbo diesel engine
● Large swing module doors for access to all components
● Logically grouped components and numbered wiring for easy reference
● Machine tie-downs
● Multi-axis tilt sensor
● Non-skid metal deck construction
● On-board diagnostics center
● Oscillating front and rear axles for frame leveling ability
● Pinless guardrail system for quick and simple guard rail lowering
● Platform swing gate
● Powder coat finish
● Stainless steel wire rope lanyard anchors for full platform mobility
● Tilt alarm and horn
● Triple joystick interface
OPTIONS:
● 12 kW 3-phase 275A welder-ready generator
● AC generator (120V / 60Hz - 3,000W)
● AC generator (240V / 50Hz - 2,500W)
● Air line to platform, 1/2 in. (1.27 cm) inner diameter
● Australian compliant options
● Automotive horn
● CE compliant options
● Cladding rack
● Diesel scrubber muffler with spark arrestor
● Flashing beacon (continuous)
● Glazier rack
● Glazier side attachments
● Hostile environment kit
● Non-marking tires
● Pipe cradle
● Pipe rack
● Platform canopy
● Platform control box cover
● Platform work lights
● Sheet material rack
● Water line to platform
● Weld leads to platform
● Work bench
*Metric equivalent of working height adds 2m to platform height. U.S. adds 6 ft. to platform height.
Weight may vary with certain options or configurations.
Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
Specifications
Approach Angle: |
36%/20º |
Boom Extend Speed: |
45 sec |
Boom Lift & Extend Combined Speed: |
75 sec |
Boom Lift Speed: |
60 sec |
Breakover Angle: |
40%/22º |
Capacity Total: |
3,000 lbs | 1350 kg |
Drive Speed (Elevated): |
0.5 MPH | 0.8 km/h |
Drive Speed (Stowed): |
4 MPH | 6.4 km/h |
Engine: |
Kubota 100 hp (74 kW) V-3800T Turbo Diesel |
Frame Leveling (Each Side): |
10º |
Fuel Tank Capacity: |
40 gallons | 150 liters |
Gradeability: |
40%/22º |
Ground Clearance (under axles): |
16” | 41 cm |
Ground Clearance (under center of machine): |
18” | 46 cm |
Height with Rails Folded: |
94" | 2.4m |
Hydraulic Oil Capacity: |
50 gallons | 190 liters |
Inside Turning Radius (4WS): |
10' | 3 m |
Length (Length with Ladder Removed): |
23' (22' 6") | 7 m (6.9 m) |
Loading Height: |
80" | 2 m |
Material Load (within Load Zone): |
2,000 lbs | 900 kg |
Maximum Drive Height: |
40' | 12.2 m |
Maximum Forward Telescope (with Stabilizers): |
48' | 14.6m |
Maximum Horizontal Translation: |
75'@ 24' Elevation | 23 m @7.3 m Elevation |
Maximum Rearward Platform: |
10' | 3 m |
Outside Turning Radius (4WS): |
24' | 7.3 m |
Personnel and Equipment: |
1,000 lbs | 450 kg |
Platform Height: |
60’ | 18.3 m |
Platform Length: |
22' | 6.7 m |
Platform Rotation: |
180º (+90º, -90º) |
Platform Slider Boom Travel: |
8' | 2.4 m |
Platform Translation Speed: |
20 sec |
Platform Width: |
90" | 2.28m |
Steering Modes: |
2WS, 4WS, Crab Steer |
Weight: |
39,700 lbs | 18,000 kg |
Wheelbase: |
160" | 4 m |
Width (Shipping Width): |
91" | 2.3m |
Width (width with stabilizers down): |
102" (144") | 2.6 m (3.7 m) |
Working Height*: |
66’* | 20 m* |
-
Specifications
Specifications
Approach Angle:
36%/20º Boom Extend Speed:
45 sec Boom Lift & Extend Combined Speed:
75 sec Boom Lift Speed:
60 sec Breakover Angle:
40%/22º Capacity Total:
3,000 lbs | 1350 kg Drive Speed (Elevated):
0.5 MPH | 0.8 km/h Drive Speed (Stowed):
4 MPH | 6.4 km/h Engine:
Kubota 100 hp (74 kW) V-3800T Turbo Diesel Frame Leveling (Each Side):
10º Fuel Tank Capacity:
40 gallons | 150 liters Gradeability:
40%/22º Ground Clearance (under axles):
16” | 41 cm Ground Clearance (under center of machine):
18” | 46 cm Height with Rails Folded:
94" | 2.4m Hydraulic Oil Capacity:
50 gallons | 190 liters Inside Turning Radius (4WS):
10' | 3 m Length (Length with Ladder Removed):
23' (22' 6") | 7 m (6.9 m) Loading Height:
80" | 2 m Material Load (within Load Zone):
2,000 lbs | 900 kg Maximum Drive Height:
40' | 12.2 m Maximum Forward Telescope (with Stabilizers):
48' | 14.6m Maximum Horizontal Translation:
75'@ 24' Elevation | 23 m @7.3 m Elevation Maximum Rearward Platform:
10' | 3 m Outside Turning Radius (4WS):
24' | 7.3 m Personnel and Equipment:
1,000 lbs | 450 kg Platform Height:
60’ | 18.3 m Platform Length:
22' | 6.7 m Platform Rotation:
180º (+90º, -90º) Platform Slider Boom Travel:
8' | 2.4 m Platform Translation Speed:
20 sec Platform Width:
90" | 2.28m Steering Modes:
2WS, 4WS, Crab Steer Weight:
39,700 lbs | 18,000 kg Wheelbase:
160" | 4 m Width (Shipping Width):
91" | 2.3m Width (width with stabilizers down):
102" (144") | 2.6 m (3.7 m) Working Height*:
66’* | 20 m*
