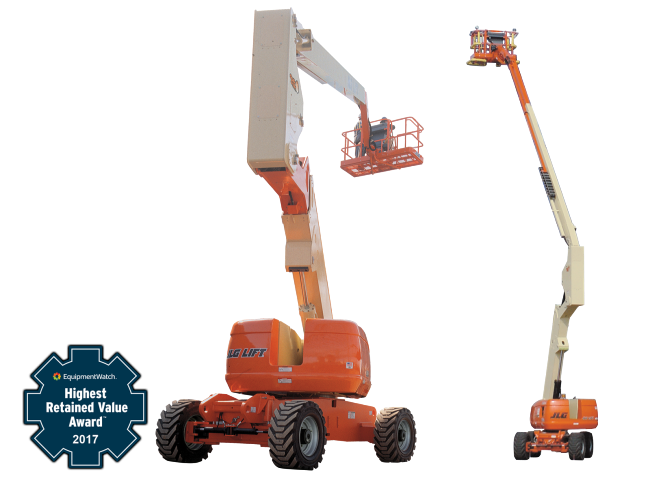

JLG Equipment 740AJ
Boom Lifts
How can we help?
888-503-4685
Features
-

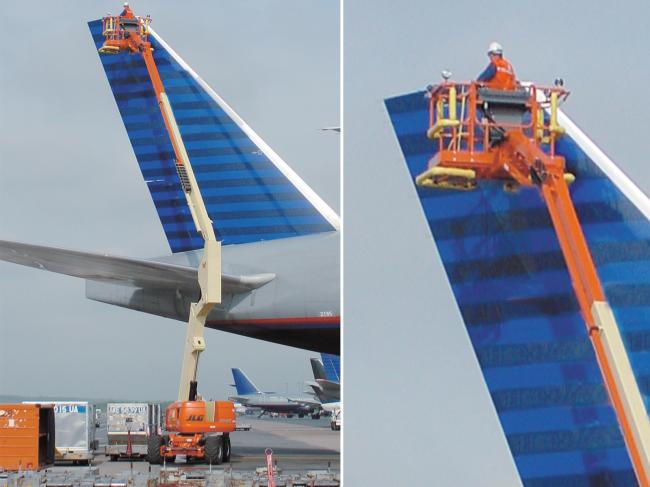

Articulating jib allows you to reach all external surfaces of any aircraft made today
-

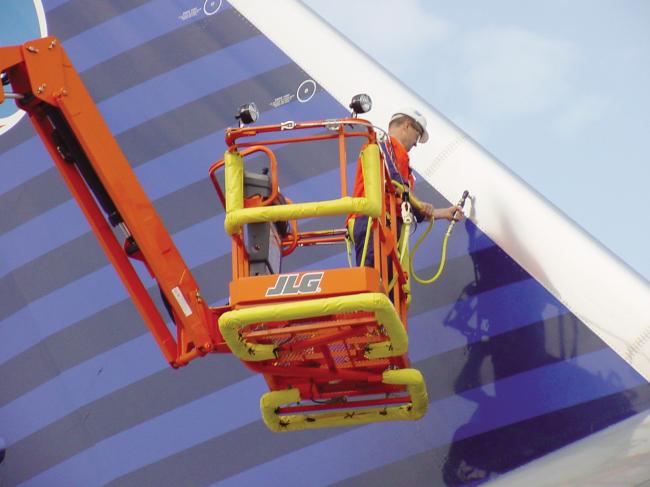

With the Fall Arrest system, you can move 270 degrees around and 6 ft beyond the platform
-
Made specifically for working on today’s aircraft
Specifications
Auxiliary Power: |
12 Volts DC |
Axle Oscillation: |
0 in. / 0 m |
Capacity - Fuel Tank: |
40 gal. / 151.42 L |
Capacity - Hydraulic Reservoir: |
48 gal. / 181.70 L |
Drive Speed - 4WD: |
3 mph / 4.83 km/h |
Engine Type - Diesel: |
DEUTZ TD 2.9L Tier 4 Final 67 hp |
Engine Type - Dual Fuel: |
Ford MSG425 84hp |
Gradeability - 4WD: |
45 % |
Ground Clearance: |
1 ft / 0.3 m |
Horizontal Jib Rotation: |
0 Degrees |
Horizontal Outreach: |
51 ft 10 in. / 15.8 m |
Jib - Range of articulation: |
130 Degrees |
Machine Height: |
9 ft 10 in. / 3 m |
Machine Length: |
36 ft 6 in. / 11.13 m |
Machine Weight: |
36200 lb / 16420.04 kg |
Machine Width: |
8 ft 2 in. / 2.49 m |
Maximum Ground Bearing Pressure: |
61 psi / 4.27 Kg/cm2 |
Platform Capacity - Unrestricted: |
500 lb / 226.80 kg |
Platform Dimension A: |
3 ft / 0.91 m |
Platform Dimension B: |
6 ft / 1.83 m |
Platform Height: |
74 ft / 22.56 m |
Swing: |
360 Degrees |
Swing Type: |
Continuous |
Tailswing: |
2 ft 6 in. / 0.76 m |
Tire Size: |
445/55D19.5 Foam-Filled Wide Lug Tread |
Turning Radius - Outside (4WS): |
14 ft 6 in. / 4.42 m |
Up and Over Height: |
25 ft 1 in. / 7.65 m |
