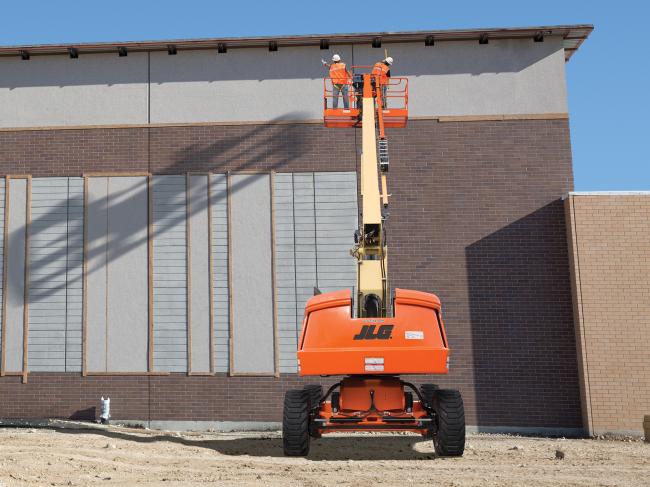

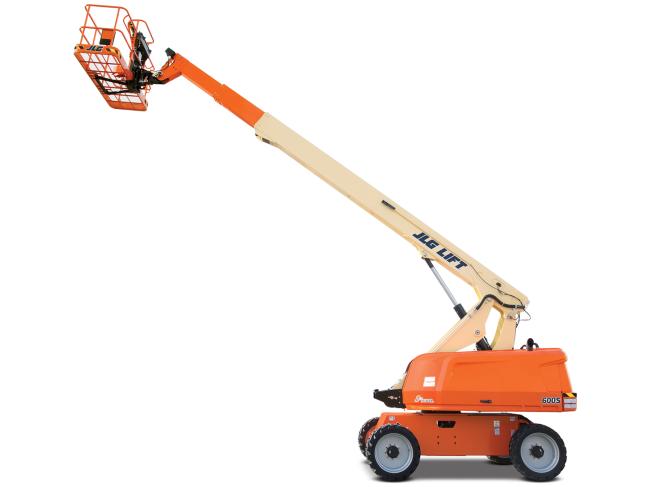

JLG Equipment 600S
Boom Lifts
How can we help?
888-503-4685
Features
-
Easy to Transport - Fit two on one truck with no overweight permit
-
Faster Ascent - Reaches full height quicker for higher productivity on the job site
-
Greater Platform Capacity - Newly designed with 600 lb of platform capacity
Specifications
Auxiliary Power: |
12 Volts DC |
Axle Oscillation: |
8 in. / 0.2 m |
Capacity - Fuel Tank: |
31 gal. / 117.35 L |
Capacity - Hydraulic Reservoir: |
34 gal. / 128.70 L |
Drive Speed - 4WD: |
3.8 mph / 6.12 km/h |
Engine Type - Diesel: |
Deutz TD2.9L4 67 hp (50 kW) Tier 4 Final |
Engine Type - Dual Fuel: |
Ford MSG425-DF 84 hp (62.6 kW) |
Gradeability - 4WD: |
45 % |
Ground Clearance: |
11 in. / 0.29 m |
Horizontal Outreach: |
50 ft 2 in. / 15.29 m |
Machine Height: |
8 ft 2 in. / 2.5 m |
Machine Length: |
28 ft 7 in. / 8.71 m |
Machine Weight: |
21461 lb / 9734.55 kg |
Machine Width: |
8 ft 2 in. / 2.49 m |
Maximum Ground Bearing Pressure: |
78 psi / 5.46 Kg/cm2 |
Platform Capacity - Restricted: |
1000 lb / 453.59 kg |
Platform Capacity - Unrestricted: |
600 lb / 272.16 kg |
Platform Dimension A: |
3 ft / 0.91 m |
Platform Dimension B: |
8 ft / 2.44 m |
Platform Height: |
59 ft 8 in. / 18.19 m |
Swing: |
360 Degrees |
Tailswing: |
4 ft / 1.22 m |
Tire Size: |
41/181.1 X 22.5 |
Turning Radius - Outside (2WS): |
19 ft 7 in. / 5.97 m |
Turning Radius - Outside (4WS): |
12 ft 8 in. / 3.86 m |
