Genie Z-30/20 N
Boom Lifts
How can we help?
888-503-4685

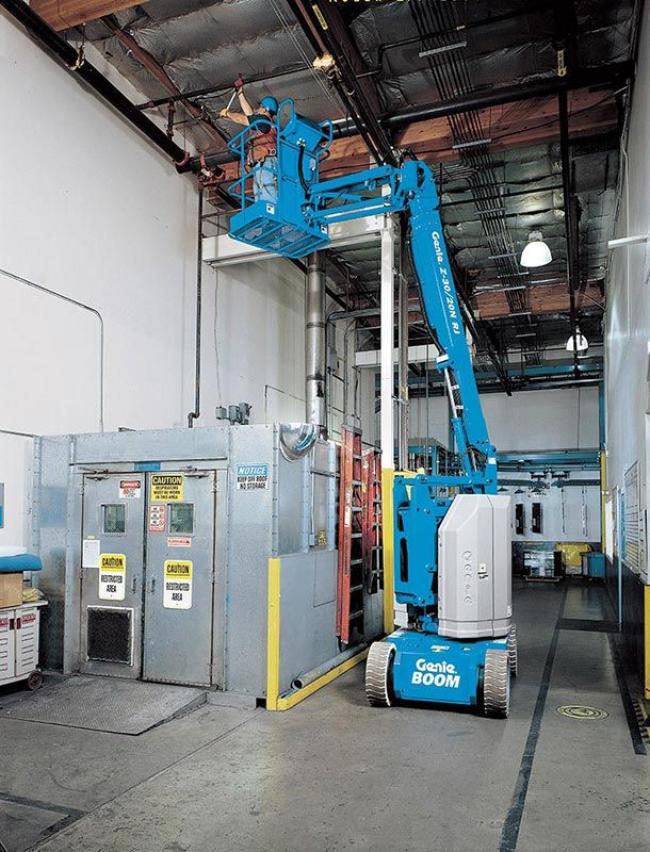

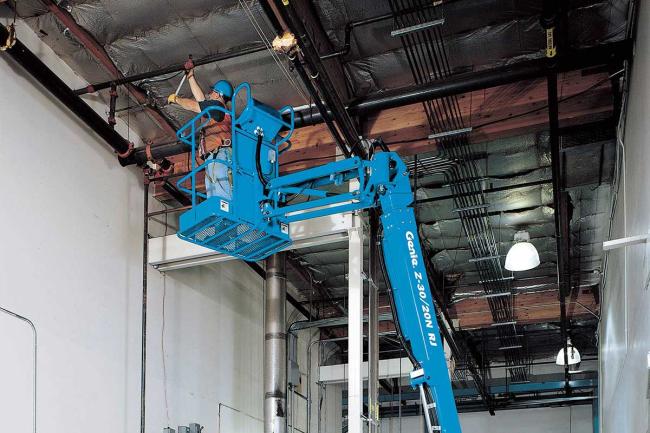

The Genie® Z®-30/20 N articulating boom lift offers quiet, emission-free operation in the most sensitive work environments.
With this Genie® narrow electric lift, operators can easily drive through standard doorways, work close to buildings or around obstacles, and access overhead work from aisles and other congested areas.
Overview
- Works in tight spaces with zero tailswing and front arm swing in stowed and raised positions
- Compact chassis for narrow aisle access
- 4 ft (1.22 m) jib boom has 139° range of motion allowing precise positioning above or below
- 35% gradeability drive performance and 3.3 mph travel speed
The Genie® Z®-30/20 N articulating boom lift offers quiet, emission-free operation in the most sensitive work environments.
With this Genie® narrow electric lift, operators can easily drive through standard doorways, work close to buildings or around obstacles, and access overhead work from aisles and other congested areas.
Overview
- Works in tight spaces with zero tailswing and front arm swing in stowed and raised positions
- Compact chassis for narrow aisle access
- 4 ft (1.22 m) jib boom has 139° range of motion allowing precise positioning above or below
- 35% gradeability drive performance and 3.3 mph travel speed
Specifications
Max Horizontal Reach: |
21 ft 5 in | 6.53 m |
Max Up and Over Clearance (riser extended): |
12 ft 8 in | 3.86 m |
Max Working Height: |
36 ft | 11.14 m |
Platform Capacity: |
500 lb | 227 kg |
Options
Certification Options
- EE rating
Lift/Turntable Options
- AGM maintenance-free batteries
- Battery charge indicator (BCI)
- Specialty hydraulic oil (6 gal - cold weather, fire resistant, or biodegradable)
- Low voltage interrupt with battery charge indicator (BCI)
- Power inverter, 800W, 120V AC, 60 Hz
- Hostile environment kit: cylinder bellows, boom wiper seals and platform control box cover
Platform Options
- Air line to platform: ? in. inner diameter
- Aircraft protection kit: platform foam padding and padded disable system
- Light package: 2 chassis mounted drive lights, 2 platform mounted work lights
- Lockable platform control box cover
- Platform ½ height mesh inserts with swing gate
- Platform auxiliary top rail
- Platform swing gate
-
Specifications
Specifications
Max Horizontal Reach:
21 ft 5 in | 6.53 m Max Up and Over Clearance (riser extended):
12 ft 8 in | 3.86 m Max Working Height:
36 ft | 11.14 m Platform Capacity:
500 lb | 227 kg - Downloads & Documentation
-
Details
Options
Certification Options
- EE rating
Lift/Turntable Options
- AGM maintenance-free batteries
- Battery charge indicator (BCI)
- Specialty hydraulic oil (6 gal - cold weather, fire resistant, or biodegradable)
- Low voltage interrupt with battery charge indicator (BCI)
- Power inverter, 800W, 120V AC, 60 Hz
- Hostile environment kit: cylinder bellows, boom wiper seals and platform control box cover
Platform Options
- Air line to platform: ? in. inner diameter
- Aircraft protection kit: platform foam padding and padded disable system
- Light package: 2 chassis mounted drive lights, 2 platform mounted work lights
- Lockable platform control box cover
- Platform ½ height mesh inserts with swing gate
- Platform auxiliary top rail
- Platform swing gate
