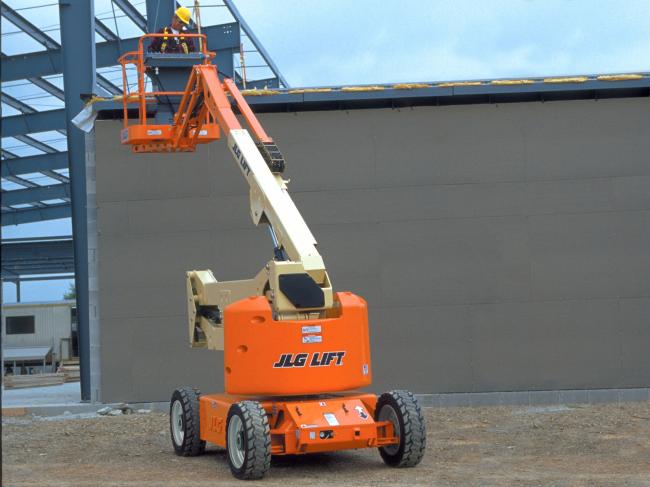

JLG Equipment E450AJ
Boom Lifts
How can we help?
888-503-4685
Features
-
Maneuverability – move over uneven surfaces with Automatic Traction Control
-
Environmentally friendly – zero emissions
-
Productivity – work longer with longer duty cycles
-
Accessibility – up and over access, optional jib
Specifications
Batteries: |
8 x 6V, 370 amp-hr |
Capacity - Hydraulic Reservoir: |
4 gal. / 15.14 L |
Drive Speed - Platform Lowered: |
3.2 mph / 5.15 km/h |
Electrical System: |
48 Volts DC |
Gradeability - 2WD: |
30 % |
Ground Clearance: |
9 in. / 0.22 m |
Horizontal Jib Rotation: |
0 Degrees |
Horizontal Outreach: |
23 ft 9 in. / 7.24 m |
Jib - Range of articulation: |
141 Degrees |
Machine Length: |
21 ft 2 in. / 6.45 m |
Machine Weight: |
14400 lb / 6531.73 kg |
Machine Width: |
5 ft 9 in. / 1.75 m |
Platform Capacity: |
500 lb / 226.80 kg |
Platform Dimension A: |
2 ft 6 in. / 0.76 m |
Platform Dimension B: |
5 ft / 1.52 m |
Platform Height: |
45 ft / 13.72 m |
Swing: |
360 Degrees |
Swing Type: |
Non-Continuous |
Tailswing: |
0 in. / 0 m |
Tire Size: |
240/55-17.5 Pnuematic |
Turning Radius - Outside: |
10 ft 4 in. / 3.15 m |
Up and Over Height: |
25 ft 3 in. / 7.7 m |
Wheelbase: |
6 ft 7 in. / 2.01 m |
