JLG Equipment H340AJ Hybrid
Boom Lifts
How can we help?
888-503-4685
Features
-
Hybrid technology – Runs completely on 8 x 12v 100 amp-hour AGM batteries, which are charged by the diesel generator
-
Diesel-like performance – Four independent electric-drive motors and a Tier 4 Final diesel-powered generator provide exceptional terrainability on par with its diesel counterpart
-
Low emissions – Experience reduced fuel use*, emissions, noise and maintenance
-

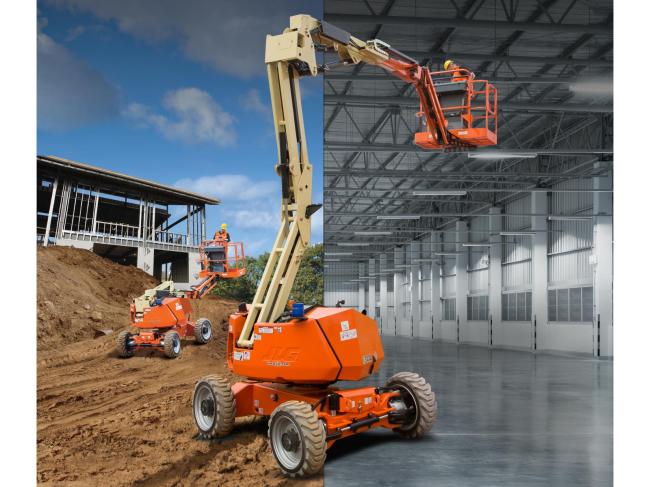

Versatility – The power of a diesel machine combined with hybrid efficiency allows you to work both inside and outside
Specifications
Batteries: |
8 x 12V, 100 Amp-Hour |
Capacity - Hydraulic Reservoir: |
20.6 gal. / 77.98 L |
Drive Speed - Platform Lowered: |
3.7 mph / 5.95 km/h |
Electrical System: |
48 Volts DC |
Generator / Engine - Brand: |
Kubota |
Generator / Engine - Fuel Tank Capacity: |
13 gal. / 49.21 L |
Generator / Engine - Fuel Type: |
Diesel |
Generator / Engine - Horsepower / Kilowatts: |
11.1 hp / 8.28 kW |
Gradeability - 4WD: |
45 % |
Ground Clearance: |
10 in. / 0.26 m |
Horizontal Jib Rotation: |
0 Degrees |
Horizontal Outreach: |
19 ft 11 in. / 6.07 m |
Jib - Range of articulation: |
139 Degrees |
Machine Height: |
6 ft 7 in. / 2.01 m |
Machine Length: |
18 ft 2 in. / 5.54 m |
Machine Weight: |
9860 lb / 4472.42 kg |
Machine Width: |
6 ft 4 in. / 1.93 m |
Platform Capacity: |
500 lb / 226.80 kg |
Platform Dimension A: |
2 ft 6 in. / 0.76 m |
Platform Dimension B: |
5 ft / 1.52 m |
Platform Height: |
33 ft 9 in. / 10.29 m |
Swing: |
355 Degrees |
Swing Type: |
Non-Continuous |
Tailswing: |
2 in. / 0.05 m |
Tire Size: |
265/50 D20 |
Turning Radius - Outside: |
13 ft / 3.96 m |
Up and Over Height: |
17 ft / 5.18 m |
Wheelbase: |
6 ft 2 in. / 1.88 m |
