Genie SX-180
Boom Lifts
How can we help?
888-503-4685

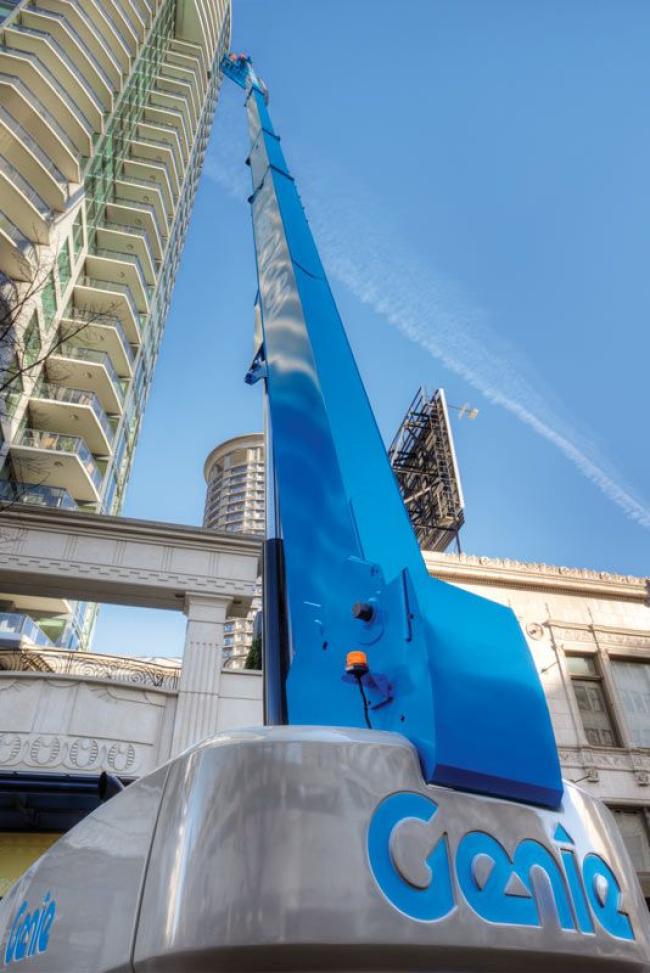

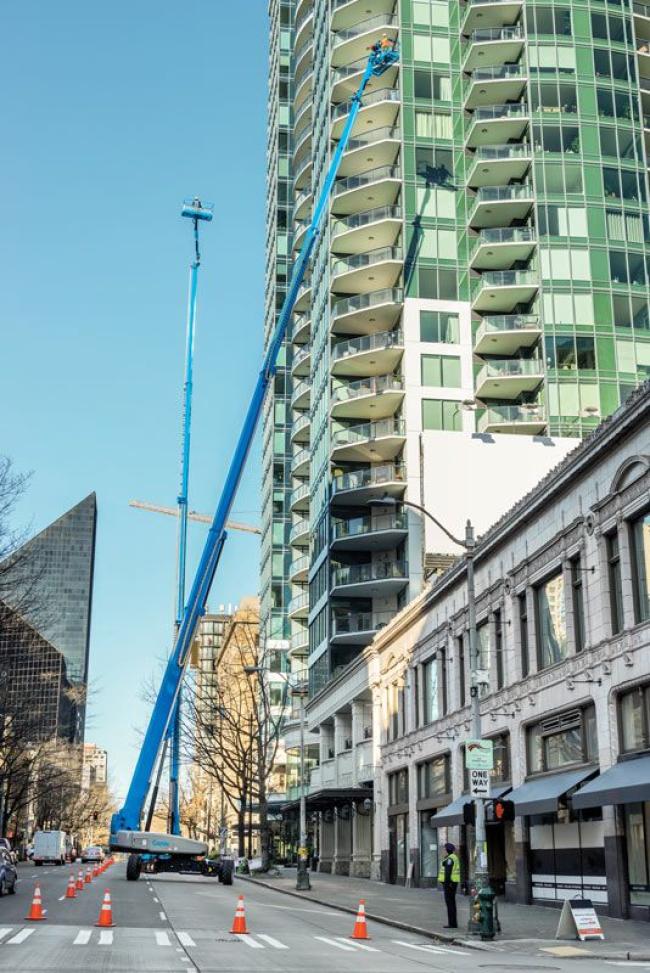

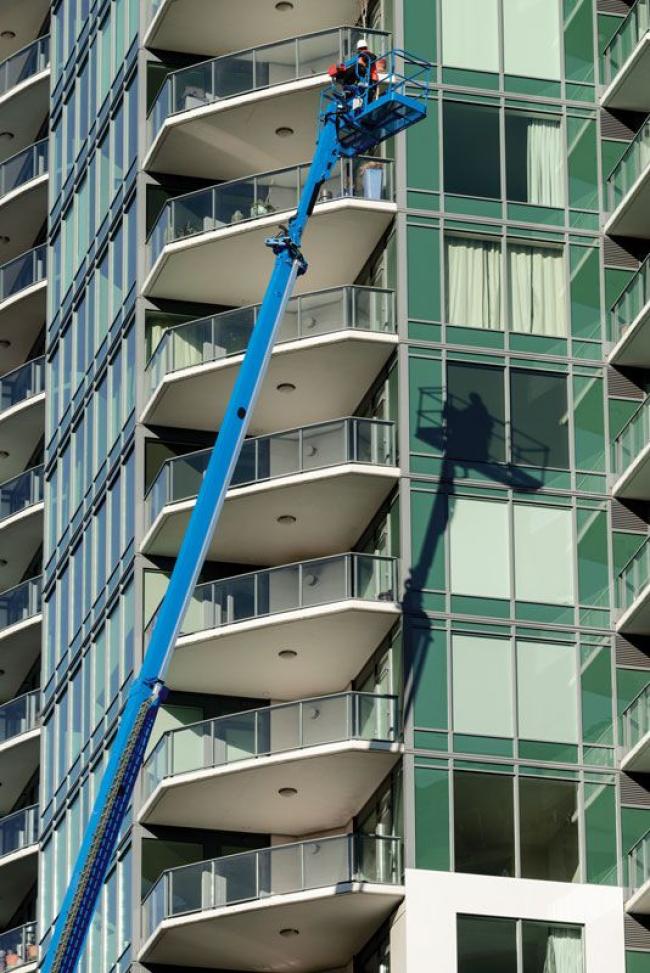

The highest reaching model in the line-up, the Genie® SX™-180 telescopic boom is built to safely and quickly lift operators. It is purpose-built to work on jobsites in the oil and gas industries and in commercial construction, industrial construction and maintenance, and general maintenance applications.
Overview
- Tackles the most extreme jobs with a vertical reach of 180 ft (54.9 m) and horizontal reach of 80 ft (24.4 m)
- Easily position workers and gear with a 10 ft (3.05 m) rotating jib

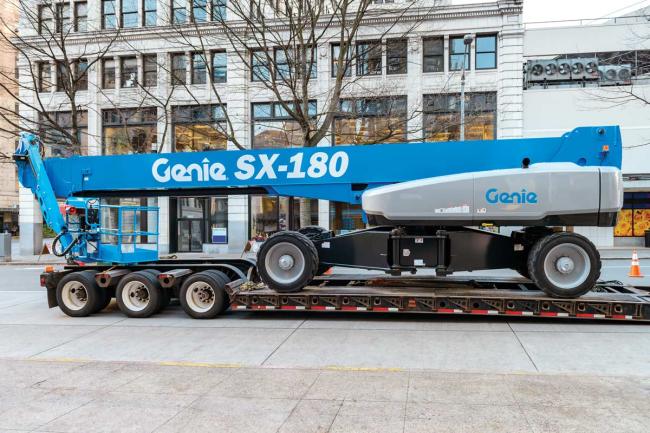

- Genie XChassis™ extends and retracts to provide stability on the job and a narrow profile for transport
- Standard 8 ft (2.44 m) self-leveling platform with an unrestricted capacity of 750 lb (340 kg)
The highest reaching model in the line-up, the Genie® SX™-180 telescopic boom is built to safely and quickly lift operators. It is purpose-built to work on jobsites in the oil and gas industries and in commercial construction, industrial construction and maintenance, and general maintenance applications.
Overview
- Tackles the most extreme jobs with a vertical reach of 180 ft (54.9 m) and horizontal reach of 80 ft (24.4 m)
- Easily position workers and gear with a 10 ft (3.05 m) rotating jib
- Genie XChassis™ extends and retracts to provide stability on the job and a narrow profile for transport
- Standard 8 ft (2.44 m) self-leveling platform with an unrestricted capacity of 750 lb (340 kg)
Specifications
Below Ground Reach: |
2 ft | 0.61 m |
Machine Width and Length: |
16 ft 6 in / 53 ft 1 in | 5.03 m / 16.18 m |
Max Horizontal Reach: |
80 ft | 24.38 m |
Max Working Height: |
186 ft | 56.86 m |
Platform Capacity: |
750 lb | 340 kg |
Links
Options
Engine Options
- Diesel intake air pre-cleaner
- Cold weather recirc kit: 5W-40 Synthetic engine oil, oil pan heater, battery heater, platform manifold recirculation, and hydraulic tank heater
Lift/Turntable Options
- Hostile environment kit: cylinder bellows, boom wiper seals, platform control box cover, second engine oil filter
- Specialty hydraulic oil (225 gal - cold weather, fire resistant, or biodegradable)
Platforms
- 8 ft. tri entry platform with ½ height mesh inserts and side swing gate
Platform Options
- Air line to platform
- Light package: 2 platform mounted work lights
- Lockable platform control box cover
- Thumb rocker steering
- Welder - Select Lincoln or Miller
- Anemometer
- Traveling fall arrest anchor system: requires 8ft platform
Generator Options
- AC Generator, 12kW, 208V/110V/60Hz
-
Specifications
Specifications
Below Ground Reach:
2 ft | 0.61 m Machine Width and Length:
16 ft 6 in / 53 ft 1 in | 5.03 m / 16.18 m Max Horizontal Reach:
80 ft | 24.38 m Max Working Height:
186 ft | 56.86 m Platform Capacity:
750 lb | 340 kg - Downloads & Documentation
-
Details
Options
Engine Options
- Diesel intake air pre-cleaner
- Cold weather recirc kit: 5W-40 Synthetic engine oil, oil pan heater, battery heater, platform manifold recirculation, and hydraulic tank heater
Lift/Turntable Options
- Hostile environment kit: cylinder bellows, boom wiper seals, platform control box cover, second engine oil filter
- Specialty hydraulic oil (225 gal - cold weather, fire resistant, or biodegradable)
Platforms
- 8 ft. tri entry platform with ½ height mesh inserts and side swing gate
Platform Options
- Air line to platform
- Light package: 2 platform mounted work lights
- Lockable platform control box cover
- Thumb rocker steering
- Welder - Select Lincoln or Miller
- Anemometer
- Traveling fall arrest anchor system: requires 8ft platform
Generator Options
- AC Generator, 12kW, 208V/110V/60Hz
