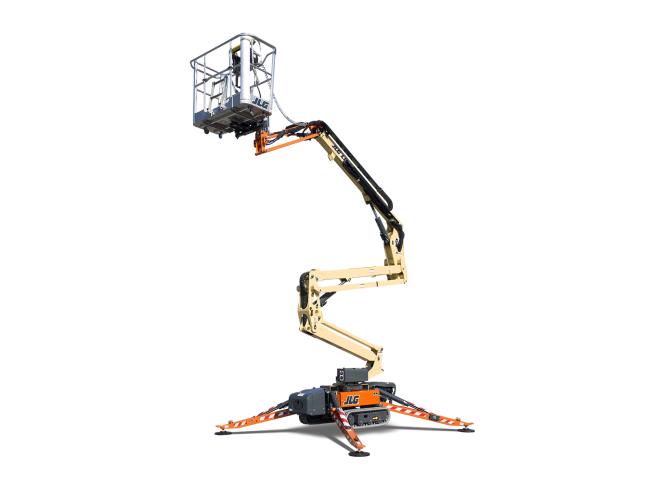

JLG Equipment X430AJ
Boom Lifts
How can we help?
888-503-4685
Key Specs
- Machine Width: 2 ft 5 in. / 0.74 m
- Platform Capacity: 500 lb / 226.80 kg
Key Features
- Best in Class - Outstanding horizontal reach with a 500 lb unrestricted platform capacity
- Quiet, Clean Operation - Lithium-ion 2.0 power system is eco-friendly without sacrificing performance
- Easy to Transport - Easily lifted by a forklift or crane thanks to forklift pockets and lifting eyes
Key Specs
- Machine Width: 2 ft 5 in. / 0.74 m
- Platform Capacity: 500 lb / 226.80 kg
Key Features
- Best in Class - Outstanding horizontal reach with a 500 lb unrestricted platform capacity
- Quiet, Clean Operation - Lithium-ion 2.0 power system is eco-friendly without sacrificing performance
- Easy to Transport - Easily lifted by a forklift or crane thanks to forklift pockets and lifting eyes
Features
-
Easy to Transport - Easily lifted by a forklift or crane thanks to forklift pockets and lifting eyes
-
Quiet, Clean Operation - Lithium-ion 2.0 power system is eco-friendly without sacrificing performance
-
Best in Class - Outstanding horizontal reach with a 500 lb unrestricted platform capacity
Specifications
Engine Type - Electric: |
100Ah 36 V Lithium-Ion |
Engine Type - Gasoline: |
Honda iGX390 |
Fuel Tank Capacity - Gasoline: |
1.4 gal. / 5.30 L |
Gradeability: |
28 % |
Ground Bearing Pressure - Outriggers: |
34.1 psi / 2.39 Kg/cm2 |
Horizontal Outreach: |
21 ft 7 in. / 6.58 m |
Jib - Range of articulation: |
89 Degrees |
Machine Height: |
6 ft 6 in. / 1.98 m |
Machine Length: |
13 ft 2 in. / 4.01 m |
Machine Weight: |
4392 lb / 1992.18 kg |
Machine Width: |
2 ft 5 in. / 0.74 m |
Outrigger Footprint Width: |
9 ft 2 in. / 2.79 m |
Platform Capacity: |
500 lb / 226.80 kg |
Platform Dimension A: |
4 ft 10 in. / 1.47 m |
Platform Dimension B: |
2 ft 6 in. / 0.76 m |
Slope Tolerance: |
12 ° |
Swing: |
360 Degrees |
Swing Type: |
Non-Continuous |
Track Length: |
4 ft 1 in. / 1.24 m |
Working Height: |
50 ft / 15.24 m |
Links
-
Features
Features
-
Easy to Transport - Easily lifted by a forklift or crane thanks to forklift pockets and lifting eyes
-
Quiet, Clean Operation - Lithium-ion 2.0 power system is eco-friendly without sacrificing performance
-
Best in Class - Outstanding horizontal reach with a 500 lb unrestricted platform capacity
-
-
Specifications
Specifications
Engine Type - Electric:
100Ah 36 V Lithium-Ion Engine Type - Gasoline:
Honda iGX390 Fuel Tank Capacity - Gasoline:
1.4 gal. / 5.30 L Gradeability:
28 % Ground Bearing Pressure - Outriggers:
34.1 psi / 2.39 Kg/cm2 Horizontal Outreach:
21 ft 7 in. / 6.58 m Jib - Range of articulation:
89 Degrees Machine Height:
6 ft 6 in. / 1.98 m Machine Length:
13 ft 2 in. / 4.01 m Machine Weight:
4392 lb / 1992.18 kg Machine Width:
2 ft 5 in. / 0.74 m Outrigger Footprint Width:
9 ft 2 in. / 2.79 m Platform Capacity:
500 lb / 226.80 kg Platform Dimension A:
4 ft 10 in. / 1.47 m Platform Dimension B:
2 ft 6 in. / 0.76 m Slope Tolerance:
12 ° Swing:
360 Degrees Swing Type:
Non-Continuous Track Length:
4 ft 1 in. / 1.24 m Working Height:
50 ft / 15.24 m -
